Custom CNC Perforated Aluminum Cladding Panels with 3003 H14/H24 Alloy and PVDF Coating for Facades

ブランド名:	M-CITY
モデル番号:	MCT孔付き金属コーティング
MOQ:	80スクエアメーター
価格:	USD25-USD55/square meter
供給能力:	60000sq.m

詳細情報

製品説明

詳細情報

起源の場所:

佛山市、中国

証明:

ISO9000

材料:

アルミニウム合金

推奨サイズ:

1000×2000mm

アルミニウムの厚さ:

3mm、2mm、2.5mm、4mm～10mm

表面処理:

粉体塗装、PVDF ペイント、木目調

色:

任意の RAL カラー、木目、石色、真鍮、ブロンズ

アプリケーション:

窓、フェンス、ファサード、カーテンウォール、クラッディング、装飾、スクリーン、バルコニー

最大。サイズ:

1600x4000mm

連絡先メールアドレス:

mcityalu@163.com

処理:

切断、CNC、曲げ、塗装、組立、検査、梱包

テクノロジー:

穴あき、レーザー切断、CNC タレットパンチング、彫刻、彫刻

キーワード:

孔付きアルミニウムコーティング

パッケージの詳細:

輸出梱包、合板ケース、金属ケース、フィルム+バブルフィルムの保護

供給の能力:

60000sq.m

製品説明

Customizable CNC Perforated Aluminum Cladding & Facade Panels – Vivid Yellow Series

Make a Bold Statement with Every Facade

M-City Aluminum presents our high-performance Perforated Aluminum Cladding Panels, specifically designed for modern architectural projects that demand both aesthetic impact and functional performance. Utilizing the latest in CNC (Computer Numerical Control) perforation technology, we can create any pattern—from standard circular holes to intricate, artistic designs—allowing for unparalleled design freedom for building envelopes, sunshades, and privacy screens.

Key Features & Advantages

Superior Material: Architectural Grade 3003 Alloy

We craft our panels from high-strength 3003 H14/H24 aluminum alloy. This specific alloy is the industry standard for facades due to:

Exceptional Durability: Resistant to corrosion and environmental wear
Lightweight Foundation: Significantly reduces the structural load on the building skeleton compared to steel
Fabrication Ready: Perfectly suited for complex bending, cutting, and welding required for corner panels and custom forms

Vivid, Long-Lasting Colors: PVDF & Powder Coating

The stunning yellow seen in our project photos is achieved through a multi-stage, industrial-grade coating process:

10-20 Year Warranty: We offer PVDF (Fluorocarbon) coating options (AkzoNobel or PPG) which guarantee color retention and gloss even under harsh UV exposure
Powder Coating: Eco-friendly powder coating options are also available for specific interior or lower-exposure applications

Functional Design through Perforation (Form Meets Function)

Our perforation is not just decorative; it's an engineering tool. By customizing the Open Area Percentage (OAP), we deliver:

Natural Ventilation: Improving building breathing and reducing HVAC costs
Solar Shading: Filtering harsh direct sunlight to create comfortable, glare-free indoor spaces
Acoustic Control: Perforated panels, combined with acoustic backing, can significantly reduce street noise levels

Direct Factory Customization & Support

We are a direct manufacturer. This allows us to provide a seamless design-to-delivery service:

Pattern Customization: From standard hole patterns to CNC-cut artistic patterns
Precision Fabricating: Every panel is pre-cut, bent, and corner-welded according to shop drawings to ensure a flawless fit on-site
Installation Support: Our panels are engineered for easy hook-on or bolt-on systems, and we provide detailed installation guidance

Technical Specifications

Feature	Specification
Material	Alloy 3003 H14/H24, Alloy 1100 H14
Thickness	Standard: 2.0mm, 2.5mm, 3.0mm (Recommended for Facades). Custom: Up to 10mm
Max Panel Size	Custom, up to 1800mm (W) x 6000mm (L). Standard sizes also available (1220x2440mm)
Perforation Pattern	Circular, Square, Slotted, Hexagonal, Cross, Star, CNC Arbitrary Pattern (Image/Logo-based)
Open Area	Fully customizable (e.g., 20%, 30%, 50%+)
Surface Finish	PVDF Coating (Premium), PE/Powder Coating, Anodized
Color Options	Any color from the RAL Color Chart, plus custom color matching. Metallic, pearl, and wood grain finishes available
Applications	Exterior Building Facade, Internal Wall Cladding, Sunscreen Louvre, Ceiling Panels, Privacy Screens, Balcony Fencing

Common Application Scenarios

Commercial Building Facades: Creating vibrant, iconic exteriors
Educational Facilities: Schools and universities using bright colors to inspire
Multi-story Parking Garages: Using perforated screens for mandatory ventilation and theft prevention
Transportation Hubs: Railway stations, airports (acoustics + visibility)
High-End Retail Fronts & Shop Interiors

A professional manufacturer, M-City Aluminum have excellent design team and fabrication workers as well as advanced CNC facilities. We can produce the Aluminum panels according to customer's requirements for dimensions, specifications, shapes, structures, colors and competitive budgets. We can also send engineer to the site to measure installation specifications and work out shop drawings to help the customers with smooth installation.

All Aluminum panels are prefabricated according to customer's designs and drawings. You only need to make a frame and prepare some bolts for installation, finally use some sealants to finish the gaps among panels. It is an easy job for envelope and decoration of buildings.

The metal cladding panel is made of high-quality high-strength aluminum alloy sheet, and its commonly used thickness is 1.5mm, 2.0mm, 2.5mm, 3.0mm. The maximum width of the sheet is within 2000mm, the maximum length is within 6000mm, and the aluminum alloy series is 3003-H14 or 1100-H14. It consists of a panel, reinforce bar and bracket. The corner bracket can be directly stamped from the panel, bent and formed, or the corner bracket can be riveted on the small folding edges of the panel.

On-Site Installation - Pro-Grade Support

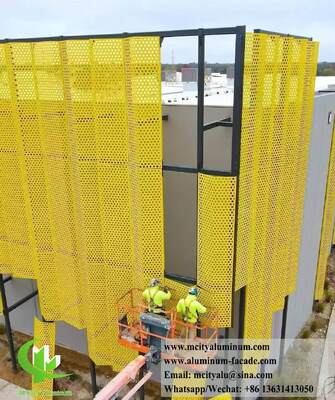

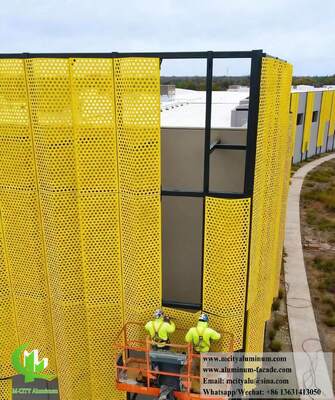

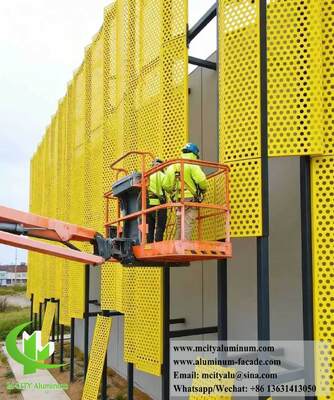

These exclusive photos from live projects highlight our commitment to on-site execution:

Factory-Level Fabrication: Notice how cleanly the yellow panels align with the steel support structure, a testament to our precision shop drawings and pre-fitting
Systemized Installation: We support various installation methods. The photos demonstrate our engineers' capability to handle complex lifts and corner installations using integrated hanging systems

Why Choose M-City Aluminum?

Direct Factory Pricing: Cut out the middlemen and get direct manufacturer rates
20+ Years Experience: Decades of architectural metalwork expertise for major international projects
Advanced Machinery: State-of-the-art CNC punching, laser cutting, bending, and powder-coating lines
Rigorous Quality Control: Each batch undergoes strict dimensional and coating inspections before shipping
Dedicated Technical Team: Free consulting on shop drawings and wind load calculations

Request a Quote Today

Are you ready to elevate your project with the perfect blend of dynamic color and functional design? Contact our engineering team for a technical consultation, shop drawing assistance, and a competitive free quote.

Let us help you build a masterpiece.

Email: mcityalu@sina.com

WhatsApp / WeChat: +86 13631413050

Visit Us: Your Full Factory Address Here

Frequently Asked Questions (FAQ)

Will the perforated aluminum cladding rust or fade when used outdoors?

No. We use high-grade 3003-series aluminum alloy, which is inherently corrosion-resistant. For exterior facades, we apply PVDF (Fluorocarbon) coating (using premium AkzoNobel or PPG resins). This industrial-grade finish is engineered to resist UV rays, acid rain, and extreme temperatures, ensuring the color remains vibrant without fading or peeling for 15-20 years.

Can you customize specific perforation patterns based on my drawings?

Absolutely. Equipped with advanced CNC punching and laser-cutting technology, we can execute any design—from standard round or square holes to complex geometric shapes and bespoke "image-based" artistic patterns. Simply provide your CAD or PDF drawings, and our technical team will provide deep-processing shop drawings for your approval.

How does the "Open Area" percentage affect the building, and how do I choose?

The "Open Area" refers to the percentage of the panel that is perforated. It determines both the aesthetic transparency and functional performance: 20%-30% Open Area is ideal for buildings seeking a solid visual impact while providing significant solar shading. 40%-60%+ Open Area is perfect for areas requiring high ventilation, such as multi-story parking garages, HVAC equipment screens, or interior acoustic panels. We can recommend the optimal open area based on your project's wind load requirements, shading needs, and privacy goals.

What is the typical lead time for a custom color project (like the yellow panels)?

For customized specifications and RAL-matched colors, our production cycle is generally 15 to 25 working days, depending on the total surface area. As a direct manufacturer, we manage everything—from CNC cutting and punching to bending and surface coating—under one roof, ensuring consistent quality and a faster turnaround.

Do you provide installation support for international projects?

We provide comprehensive technical support to ensure a smooth installation process: Shop Drawings with panel numbering and placement; recommendations for suitable installation methods such as Hook-on, Bolt-on, or Cassette systems; and remote guidance through real-time video consultations to guide your local construction team through any technical challenges.

How do I maintain the perforated panels once installed?

Perforated aluminum panels are exceptionally low-maintenance. Thanks to the smooth PVDF coating, they have a "self-cleaning" property where rain washes away most dust. For deep cleaning, a simple rinse with water or a mild neutral detergent every 1-2 years is sufficient to keep the facade looking brand new.
